DIALOG shares lessons of designing Canada’s first ‘Living Building’
The Bill Fisch Forest Stewardship and Education Centre is the first project in Canada to be recognized by the International Living Future Institute (ILFI) as Living Building Challenge certified; billed as the most rigorous sustainability standard in the world. Designed by DIALOG for the Regional Municipality of York, the centre is LEED Platinum and ILFI Certified. The Living Building Challenge (LBC) is a building certification program, advocacy tool, and philosophy that defines the most advanced measure of sustainability in the built environment possible today. The world’s most rigorous standard for green buildings, a “Living Building” is free of toxic chemicals and runs on net-zero energy, generating the same amount of and sometimes more energy that it requires to operate.
To help restore the natural habitat of the area and meet the certification’s stringent sustainability requirements, DIALOG brought together an interdisciplinary design team of architects, engineers, interior designers, forest education experts, arborists, and ecologists. The resulting 4,000 square foot single-story building has a projected 90-year lifespan, is made entirely of non-toxic and sustainably-sourced construction materials, and responds to its surrounding ecosystem by how it gathers energy from the sun to power the building and the way it purifies greywater generated in the building before returning it to the ecosystem.
“Every design and engineering effort was driven by the belief that ‘living buildings’ take responsibility for the ecosystems they play an integral part in, but we also understood at a larger scale that carbon emissions, the by-product of energy produced by fossil fuels, do not respect boundaries, so efforts were also focused on the big-picture biosphere problem,” says Craig Applegath, principal at DIALOG. “The architectural and engineering strategies carried out in the design of the Bill Fisch Forest Stewardship and Education Centre were therefore supportive of carbon neutrality and reduced carbon emissions based on the Living Building Challenge’s very strict definition of net-zero energy use. Every design decision acknowledged and responded to both the building’s immediate ecosystem, while recognizing the building’s role in reducing its global carbon footprint.”

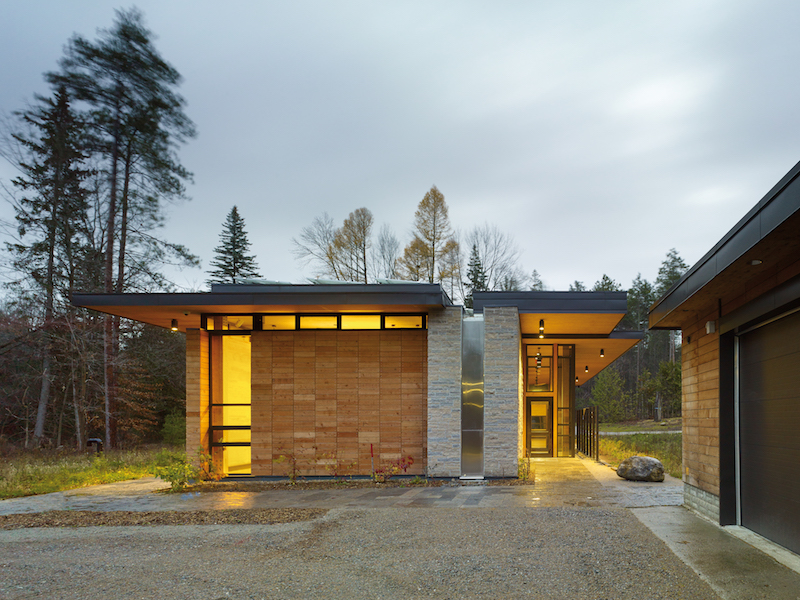

Designed to be easily disassembled and recycled after its projected 90-year life cycle, the exterior wood panelled façade was salvaged and repurposed Douglas fir from the demolished Cascades Factory on Commissioners Street in Toronto. The structure was built primarily of cross-laminated timber (CLT) and glued laminated timber (glulam) and Forest Stewardship Council (FSC)-certified to ensure materials were tracked and verified to come from ecologically sustainable sources. Sun-path orientation was the driving force behind the building’s positioning to prevent over-heating and provide shade in the summer months while naturally warming and illuminating the interior during winter months.
“We used a variety of strategies to allow the building to operate at net-zero water and net-positive energy, each of which is effective in this particular climate and context. While the same approach would be compatible to other low-density environments, there are added complexities in dense, urban environments; in those areas we are likely to look to community solar and offsetting strategies,” says Charles Marshall, sustainability associate at DIALOG. “The biggest leap forward from standard practice that we can apply to any future project, and our greatest challenge, was pursuing the ‘red list’ requirement to eliminate chemicals of concern. We spent over three years researching and requesting ingredient lists and health product declarations from our suppliers in order to be compliant, and by the end of the project, wrote several hundred letters of advocacy asking for improved transparency.”
A “Living Building” demonstrates excellence in seven performance areas over a twelve-month period of continuous occupancy. Areas include: Place (restoring a healthy interrelationship with nature); Water (creating developments that operate within the water balance of a given place and climate); Energy (relying only on current solar income); Health & Happiness (creating environments that optimize physical and psychological health and well-being); Materials (endorsing products that are safe for all species through time; Equity (supporting a just and equitable world); and, Beauty (celebrating design that uplifts the human spirit).
The Bill Fisch Forest Stewardship and Education Centre is Canada’s first “Living Building” and one of only 21 buildings worldwide with complete certification. DIALOG is overseeing net-zero energy and carbon neutral building initiatives across Canada and the U.S., including University of Calgary’s MacKimmie Complex and Professional Faculties Building Project and Public Services and Procurement Canada’s Arthur Meighen Building Rehabilitation.
All DIALOG projects incorporate design-thinking philosophies from the Community Wellbeing Framework and contribute to The AIA 2030 Commitment, a pledge made by the firm to have a carbon neutral portfolio by 2030.
